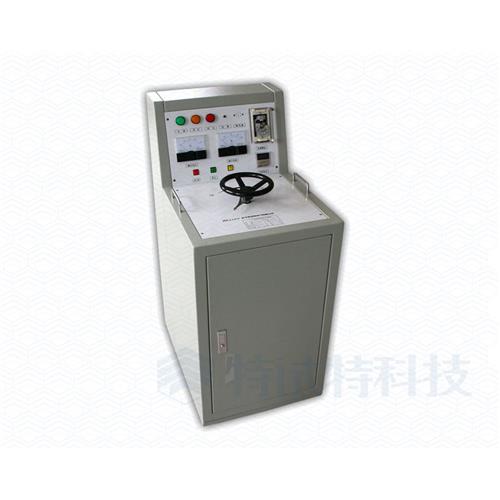

TE-SBP Trebling Frequency High-Voltage Generator
Applicable to test of detecting vertical insulation induction of transformer, and interlamination, interturn, section, intersegment of transformer winding resistance. These are important items to test whether the winding meet the requirements or not. The devices meet the requirements of the trebling frequency induced voltage withstand test and partial discharge test of DL/T596-2005 "Electrical equipment preventive testing procedures”.
Product Feature

Technical Parameters
 Output voltage   0~300V,150Hz
  0~500V,150Hz
  0~1000V,150Hz
Input voltage   380V 50HZ
 Waveform   Sine wave, distortion is less than 1%
 Capacity   1~1000kVA
 Load Characteristics   Resistive, inductive or capacitive, any one is ok
