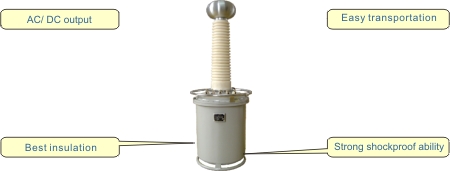

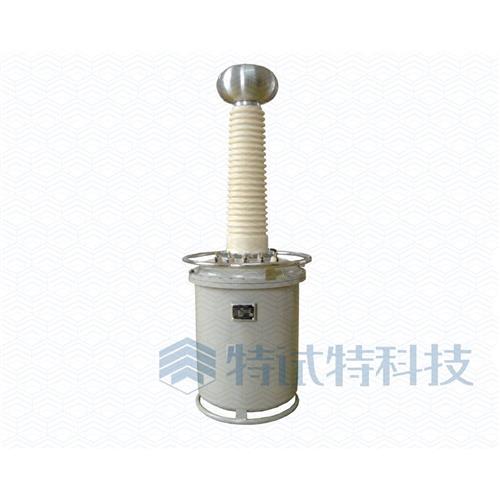

TE-GAT SF6-Insulated Test Transformer
The series of test transformer is small, light weight, compact structure, complete protection, versatility and so on. Applicable to a variety of high-voltage electrical equipment, electrical components, insulation materials of electrical system’s insulation strength test under power frequency or DC high voltage, which is a necessary and important high voltage test equipment.
Product Feature

Technical Parameters
Speci
fication		 Capacity
KVA		 low
side		 high
side		 Measuring change 6 Min
temper
ature rise
℃		 Impedance voltage
％		 No-load current
％
Voltage
V		 Current
A		 Voltage
KV		 Current
MA
1.5/50 1.5 200 7.5 50 30 500 50 10 <4
3/50 3 200 15 50 60 500 50 10 <4
6/50 6 200 30 50 120 500 50 10 <4
10/50 10 200 50 50 200 500 50 10 <4
15/50 15 400 37.5 50 300 500 50 8 <4
20/50 20 400 50 50 400 500 50 8 <4
30/50 30 400 75 50 600 500 50 8 <4
50/50 50 400 125 50 1000 500 50 8 <4
10/100 10 200 50 100 100 1000 50 10 <4
15/100 15 400 37.5 100 150 1000 50 8 <4
20/100 20 400 50 100 200 1000 50 8 <4
30/100 30 400 75 100 300 1000 50 8 <4
50/100 50 400 125 100 500 1000 50 8 <4
10/150 10 200 50 100 66.7 1500 50 10 <4
15/150 15 400 37.5 150 100 1500 50 8 <4
20/150 30 400 50 150 133.3 1500 50 8 <4
30/150 30 400 75 150 200 1500 50 8 <4
50/150 50 400 125 150 333.3 1500 50 8 <4
