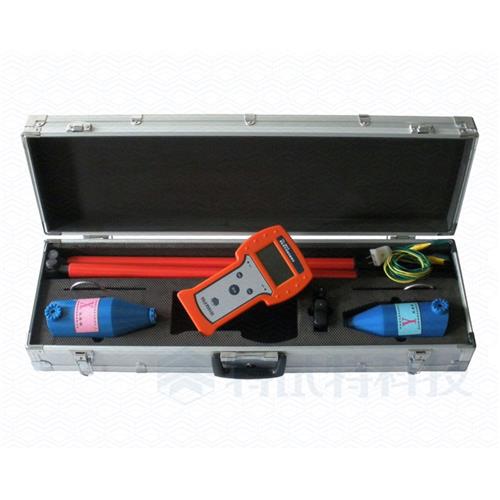

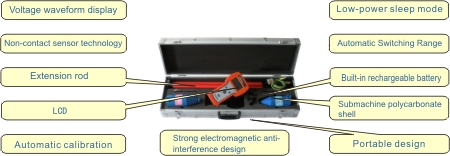

TE1600 Intelligent High Voltage Wireless Phasing Tester
TE1600 Intelligent High Voltage Wireless Phasing Tester is applicable to high voltage circuits, substations phase measurement and phase sequence checking, etc. With automatic calibration function, it can calibrate the sampling phase and amplitude errors. The instrument adopts 32-bit embedded computer, makes a higher degree of intelligence; and creatively update the traditional data form one-way communication to data two-way communication, and increase the application scope of the instrument.
Product Feature

  (1) Chinese characters display the same phase or different phase, lead or lag, and a voice prompt.
  (2) Figures display phase angle from 1 degree to 360 degrees, and has intuitive phase diagram display.
  (3) It can display voltage waveform collected by X, Y, to facilitate analysis the operator to analyze and prevent the miscarriage of justice.
  (4) It can display the amplitude ratio, which used to analyze the voltage proportional relationship.
  (5) With automatic calibration function, to calibrate the sampling phase and amplitude errors.
  (6) Host, submachine powered by a rechargeable lithium battery.
  (7) 5 to 10 times capture rate per second, waveform dynamic real-time updates.
  (8) CRC data checking, the error data affected by the interference is automatically discarded, to prevent miscarriage of justice caused by false data.
  (9) Sub-machine can work in low-power sleep mode, wake-up by the host to send data, lower power consumption.

Technical Parameters
 Power Supply   Internal power supply
 Dimensions   1000mm×140mm×100mm
 Weight   5Kg
 Service condition   Ambient temperature:-35℃~50℃    Relative humidity:≤80%
 Voltage rating   10kV~220kV
 Transmission distance   The transmission distance of the instrument≤ 15m
 Accuracy   Same phase erro≤5o
  Different phase error≤10o
